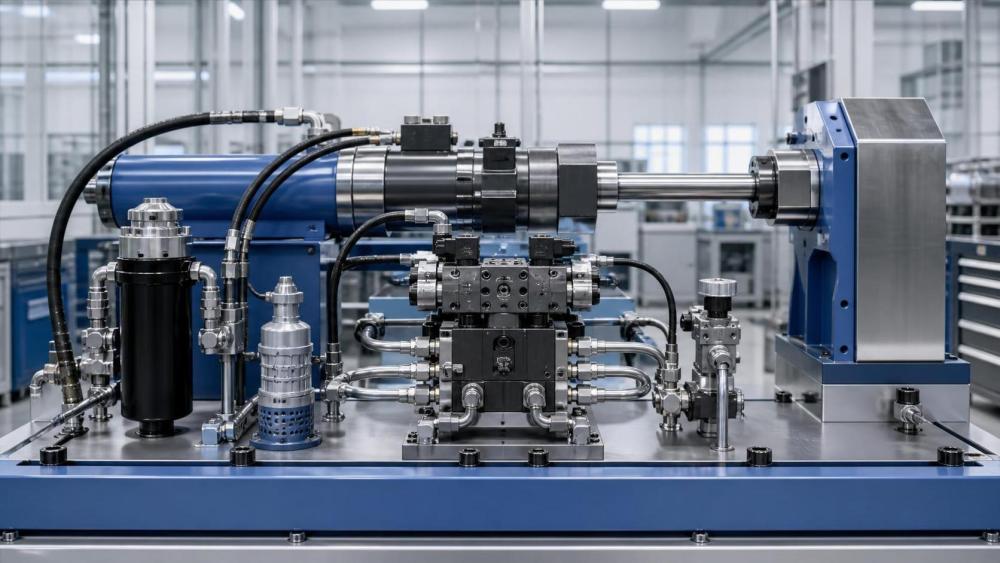

Sizing a Proportional Directional Control Valve for Smooth Cylinder Motion

Start with the motion requirement, not the valve catalog

A proportional directional control valve is often selected too early in a hydraulic design. A project team may know the cylinder bore, pump size, and nominal system pressure, then choose a valve with a familiar port size or a flow rating that appears comfortably above the target. That approach can produce a working circuit, but it does not reliably produce smooth cylinder motion.

For smooth motion, the valve must deliver controllable flow across the part of the stroke where the machine actually operates. It also needs enough pressure authority to overcome the load, line losses, seal friction, and changing cylinder area without forcing the spool to operate near either its closed-position deadband or its maximum opening.

The practical sizing question is therefore: what flow range must be controlled at the cylinder ports, at what available pressure differential, while the load and cylinder area are changing? Once those conditions are clear, valve selection becomes more defensible and commissioning risk falls sharply.

Translate cylinder speed into required valve flow

The first calculation is simple, but it should be made for every operating mode rather than for a single headline speed. Cylinder flow is determined by piston area and commanded velocity:

Required flow = effective cylinder area x cylinder speed

During extension, the effective area is the full bore area. During retraction, it is the annulus area, which is the bore area minus the rod area. A double-acting cylinder will therefore require different flows to achieve the same speed in each direction. Retraction can be materially faster than extension if the same valve opening and pump supply are used.

That difference matters when a machine needs equalized approach and return speeds, controlled lowering, synchronized motion, or a slow positioning segment at the end of travel. It is also common for a cylinder to have several required speeds: rapid approach, working feed, deceleration, hold, and return. The valve needs usable resolution at the lowest controlled speed and sufficient capacity at the highest demanded speed.

A valve sized only for maximum flow can create a poor low-speed result. When the spool must move only a very small distance to pass the required low flow, manufacturing tolerances, spool overlap, internal leakage, oil temperature, and electronic command resolution become more visible. The operator may see a jump at breakaway, hesitant creeping motion, or a cylinder that starts at a higher speed than commanded.

Conversely, a valve selected primarily for fine low-flow control may generate too much pressure drop during rapid motion. The cylinder then fails to reach its required speed, the pump works at unnecessarily high pressure, and heat generation rises. Smooth motion depends on selecting a valve whose controllable range covers both ends of the duty cycle.

Use available pressure differential, not system pressure, to size the valve

Catalog flow ratings are usually tied to a stated pressure drop across a valve metering path. They are not a promise that the valve will deliver the rated flow in every machine. The flow available through a metering edge depends on the pressure difference across it. In simplified form:

Flow is proportional to valve opening and to the square root of pressure drop.

For a project specification, this means the relevant pressure is not simply the relief-valve setting or the pump’s rated pressure. The valve sees only the pressure remaining after the cylinder load, return-line backpressure, hoses, fittings, filters, manifolds, and any other series components have taken their share.

Consider an extending cylinder pushing a load. Supply pressure must first create enough force to overcome the load and friction. Pressure also has to be available on the rod side to return oil to tank. If a return filter is restrictive or the return line is undersized, backpressure increases. The proportional valve may then have less pressure differential than assumed across its supply-to-cylinder and cylinder-to-tank metering edges.

This is one reason a valve can appear correctly sized on paper yet feel sluggish at peak load. The nominal pressure rating may be well above the application requirement, while the usable metering pressure differential is still inadequate.

A good sizing worksheet separates the pressure demand into distinct elements:

• Load-induced cylinder pressure for extension and retraction.
• Estimated seal friction, guide friction, and breakaway force.
• Pressure loss in supply hoses, return hoses, fittings, couplings, filters, coolers, and manifolds.
• Backpressure at the return port under the highest expected return flow.
• Required pressure drop through the valve at the intended maximum cylinder speed.
• A margin for oil-temperature variation, component aging, and normal manufacturing variation.

The required valve pressure drop should be intentional. Selecting a very low pressure drop is attractive for energy use, but it can leave limited control authority when the load changes. Selecting an excessively high drop sacrifices efficiency and can make the system hot. The appropriate point depends on the precision requirement, the load behavior, and whether the hydraulic source maintains pressure reliably.

Load behavior determines whether a standard directional valve is enough

Cylinder force is not always constant through a stroke. A press may encounter a low-force approach followed by a high-force forming operation. A lifting cylinder may see changing leverage. A vertical axis can become overrunning when gravity begins to drive the load. A clamping mechanism can move freely until it contacts the workpiece.

These changes alter the pressure at the cylinder port and, therefore, the flow passing through a proportional directional control valve at a given spool command. With a basic proportional directional valve, a fixed electrical command does not necessarily produce a fixed cylinder speed when load pressure changes. The valve meters flow, but flow still responds to the pressure differential across the metering edge.

For a relatively steady, resistive load, a proportional directional valve with appropriate sizing and a suitable electronic amplifier can provide good speed control. For large and rapid load changes, a valve with integrated pressure compensation, closed-loop spool control, or a separate flow-control strategy may be more suitable. When position accuracy is critical, cylinder position feedback and a motion controller may also be needed. A proportional valve alone should not be expected to deliver servo-level positioning simply because its spool receives an analog or digital command.

Overrunning loads require particular attention. If the load can pull the cylinder faster than the valve is supplying oil, the circuit may lose stable control, generate cavitation on the supply side, or create pressure spikes when motion is arrested. Counterbalance valves, overcenter valves, pilot-operated checks, or controlled meter-out arrangements may be required depending on the load direction and safety function. The directional valve should be evaluated as part of that complete load-control circuit.

Do not ignore the cylinder area ratio

The rod-to-bore ratio affects both force and stability. A large rod reduces the retract-side area, increasing retract speed for a given pump flow but reducing retract force. It also changes the pressure relationship between the two cylinder chambers. In some configurations, particularly with vertical or high-inertia loads, this can make one direction much harder to control than the other.

Project teams should calculate extension and retraction separately. The following questions expose issues that a single flow value will miss:

• Does the cylinder need the same speed in both directions, or is a faster return acceptable?
• Which direction carries the highest load pressure?
• Can the load become assisting or overrunning at any point in the stroke?
• Will return-side pressure rise enough to affect seals, load-holding devices, or valve control behavior?
• Does the system use regeneration, differential connection, or any sequence that changes the effective area?

Regenerative circuits deserve special caution. They can increase extension speed by routing rod-side flow back to the cap side, but the effective force changes substantially. The proportional valve and the control logic must be selected around the actual regenerative flow paths, not around a conventional extension calculation.

Valve flow capacity must be evaluated in the installed circuit

Port size is not a valid substitute for flow sizing. A larger valve may have a greater nominal capacity, but spool geometry, metering-edge design, internal compensation, pilot arrangement, and the manufacturer’s stated test conditions all affect usable flow. A compact valve can be well suited to a low-flow positioning axis, while a larger body with poor low-flow resolution may make that same axis difficult to tune.

When comparing candidates, request or review flow-versus-command curves and pressure-drop curves for the relevant spool configuration. The useful questions are more specific than “What is the rated flow?”

• At the available pressure differential, what flow can the valve pass at full command?
• What flow change occurs over the first part of the command range?
• Is the response symmetrical from A to B and B to A, or must the controller compensate for different cylinder areas and valve characteristics?
• What is the overlap or deadband around neutral?
• How does the valve behave as oil viscosity changes within the intended operating range?
• Does the published curve include the pilot stage and internal electronics, where applicable?

These details are especially important for equipment that must start gently, crawl at low speed, or stop repeatedly at a controlled position. A valve may have adequate maximum capacity yet still be difficult to command near zero flow. For a material-handling attachment or a machine-tool fixture, that low-flow behavior can matter more than the peak-flow figure.

Match response time to the mechanical system

Fast valve response is useful only when the rest of the system can use it. A valve that reacts quickly to an electronic command may excite a flexible load, create oscillation in a long cylinder, or generate abrupt pressure changes in piping with significant oil volume. On the other hand, a slow pilot-operated valve may make it difficult to decelerate a high-inertia mass before end-of-stroke contact.

Response time should be reviewed together with cylinder volume, hose length, load inertia, structural stiffness, and the controller’s update rate. A long hose run adds fluid compliance. Entrained air adds much more. Both can turn a nominally responsive valve into a system that overshoots or hunts.

For smooth motion, acceleration and deceleration ramps are usually as important as valve capacity. The control system should avoid applying a step command to a loaded cylinder unless the mechanical design is intended for that event. Electronic ramps, closed-loop position profiles, and properly tuned gain settings can reduce shock, but they cannot compensate fully for a valve that is grossly oversized, an unstable load-control arrangement, or a cylinder with trapped air.

Fluid condition and installation details can defeat a sound selection

Proportional valves use closely controlled metering surfaces and, in many designs, sensitive pilot passages or integrated electronics. Contamination that might be tolerated by a simple on-off directional valve can cause sticking, hysteresis, drift, or inconsistent response in a proportional system. The filtration target should follow the valve manufacturer’s requirement and should be verified at the point where the valve is protected, not assumed from the filter element rating alone.

Oil temperature also affects repeatability. Higher temperature lowers viscosity, changes internal leakage, and can alter the relationship between spool position, pressure drop, and flow. Low temperature increases viscosity and can raise line losses. A circuit commissioned with warm oil at light load may behave differently during a cold start or at maximum operating duty.

Installation choices deserve the same attention as the valve selection. Avoid restrictive return plumbing, undersized couplings, poorly routed pilot drains, and manifolds that create unnecessary cross-port interaction. Confirm allowable tank-line pressure, drain-line requirements, and electrical shielding practices for the selected valve and controller. A proportional valve is part of an electrohydraulic control loop; unstable power supply, poor grounding, and electrical noise can appear as hydraulic motion problems.

A practical specification sequence for project teams

Before releasing a valve for procurement, document the cylinder and load conditions in a form that the hydraulic supplier can review without assumptions. Include bore, rod diameter, stroke, orientation, load range, desired speeds in both directions, duty cycle, available pump flow, nominal and relief pressures, return-line arrangement, fluid type, temperature range, and the required level of speed or position control.

Then ask the supplier to size against the actual pressure-drop budget and to identify the expected valve opening at normal working speed. A useful result is not merely a part number. It is a documented statement of maximum flow, expected pressure loss, control behavior at low speed, electrical command interface, filtration requirement, and any required load-holding or pressure-control components.

Commissioning should verify more than full-speed travel. Test breakaway at the lowest commanded speed, repeatability of starts and stops, behavior at minimum and maximum load, both motion directions, cold and stabilized oil conditions, and emergency-stop behavior. If the cylinder is part of a safety-related function, the hydraulic architecture must also be reviewed for the required safe state rather than relying on proportional control alone.

A properly sized proportional directional control valve gives a cylinder enough flow to meet cycle time while retaining enough metering range to start, accelerate, slow, and stop predictably. The selection is strongest when flow, pressure differential, load behavior, cylinder geometry, and control response are treated as one system. That discipline usually prevents the most expensive outcome: a machine that meets its headline performance on paper but requires repeated mechanical and software adjustments to achieve stable motion in service.
