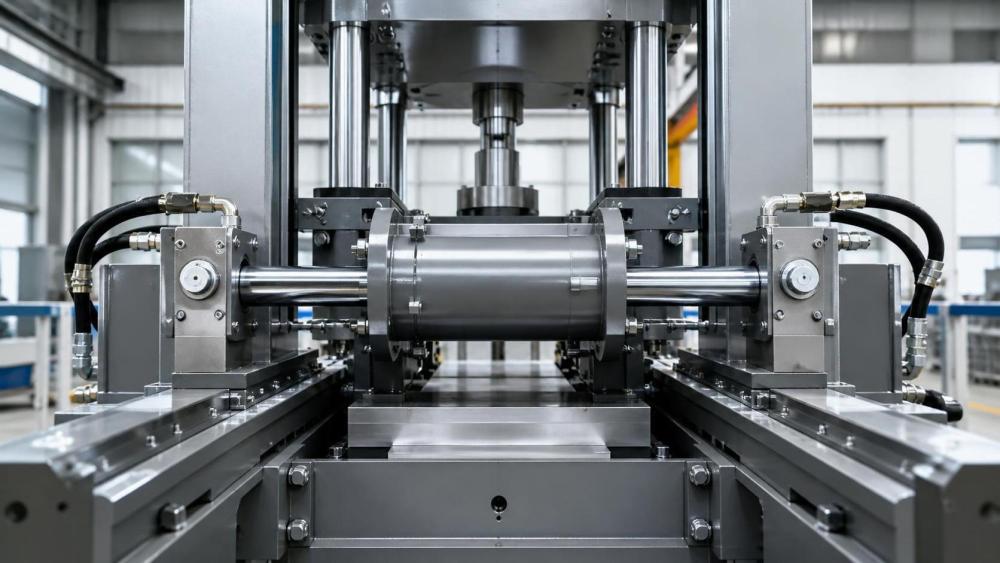

Linear Hydraulic Actuator Sizing for Force, Speed, and Mounting Constraints

A linear hydraulic actuator should be sized from the machine duty, not from the catalog force figure alone. The correct bore must produce the required push and pull force at the pressure actually available at the cylinder. The rod must remain stable throughout the stroke. The mounting must carry reaction forces without introducing side load. Speed, flow, temperature, contamination, and stopping conditions also affect whether a cylinder that works on paper will survive in service.

For a practical selection, begin with the worst credible operating condition: maximum external load, lowest available pressure, longest unsupported rod position, required cycle time, and the least favorable mounting angle. This gives a more useful basis than selecting a familiar cylinder size or applying an arbitrary pressure margin.

Start Linear Hydraulic Actuator Sizing With the Real Load Path

The first question is not “How much force does the load weigh?” It is “What force reaches the actuator at each point in the motion?” A lifting linkage, press platen, tipping mechanism, gate, clamp, or material-handling arm may change mechanical advantage dramatically through its travel. The cylinder can face its highest demand near a dead-center position even when the moved mass is unchanged.

Build a simple force-versus-position calculation or obtain one from the machine designer. Include:

• Static load from weight, process resistance, or preload
• Friction in guides, seals, bearings, and linkage pivots
• Acceleration and deceleration loads
• External forces such as material impact, wind, pressure, or cutting resistance
• Mechanical losses caused by non-ideal geometry

Do not treat friction as a universal percentage. A well-aligned rolling guide behaves very differently from a corroded slideway, a loaded seal pack, or a pin joint exposed to dirt. Where breakaway force matters, such as a sticky gate or a heavily loaded clamp, use measured values when possible.

The basic hydraulic relationship is:

Force = Pressure x Effective Area

For extension, effective area is the full piston area. For retraction, it is the annular area after the rod cross-section is subtracted. This is why a double-acting cylinder generally has less retract force at the same pressure. It is a frequent source of incorrect comparisons between supplier data sheets.

Use the minimum operating pressure at the actuator inlet, not the pump relief setting. Pressure is lost through directional valves, proportional valves, hoses, filters, fittings, manifolds, and return-line restrictions. A system with a 210 bar relief valve may deliver materially less pressure to the cylinder during high-flow movement. The available pressure should also account for normal fluid temperature and the intended operating mode.

A reasonable force margin is application-specific. High uncertainty, shock loading, wear, or contaminated field conditions justify more allowance than a controlled factory fixture with measured loads. Excessive oversizing, however, is not harmless. It can raise flow demand, increase cost, make low-speed control difficult, and shift overload damage into the machine structure.

Force Is Only Half the Selection: Match Bore to Speed and Flow

A large bore produces more force, but it also requires more oil volume. Cylinder speed is determined by:

Speed = Flow / Effective Area

In practical terms, a cylinder with twice the area needs twice the flow to achieve the same extension speed. On retraction, the rod-side volume is smaller, so retract speed will be higher than extension speed if flow is equal in both directions. That difference may be acceptable for a return stroke, but it can be undesirable in synchronized or safety-sensitive motion.

Check the entire flow path before committing to bore size. Pump displacement, motor speed, valve flow rating, hose internal diameter, port geometry, return backpressure, and heat generation must support the required cycle time. A cylinder chosen only for force may lead to a system that meets load requirements but moves too slowly, overheats, or experiences poor response.

Flow controls deserve particular care. Meter-out control can improve stability in overrunning loads, but it raises pressure on the rod side and reduces the net force available for extension. Meter-in control may be adequate for resistive loads but can allow runaway motion in a vertical or over-center application unless load-holding provisions are included.

For very low speeds, do not assume that a standard directional valve and fixed-displacement pump will provide smooth motion. Seal friction, oil compressibility, valve hysteresis, and stick-slip become visible. A proportional valve, servo valve, pressure-compensated flow control, or a different actuation concept may be justified where positional consistency matters.

Rod Buckling Often Governs a Long-Stroke Linear Hydraulic Actuator

When a cylinder pushes under compression, the rod is a column. A bore large enough for force can still be paired with a rod that is unsuitable for the extended position. Buckling risk rises quickly with unsupported length, compressive force, imperfect alignment, and a mounting arrangement that provides limited end restraint.

Supplier buckling charts are useful only when their assumptions match the installation. The effective column length depends on mounting type and how freely each end can rotate. A pinned joint behaves differently from a rigid flange mount. A trunnion-mounted cylinder may rotate as intended, but the connected structure can still introduce misalignment. Treat the manufacturer’s chart as a starting point, then confirm the actual end conditions and maximum projection.

Rod diameter should not be selected from tensile strength alone. The critical condition is usually compression at full extension, with allowances for dynamic loading and geometric imperfections. A long-stroke cylinder exposed to a sudden stop, a shifting payload, or a side-loaded attachment needs a more conservative review than a short-stroke clamp.

Side load is another common failure mechanism. A hydraulic cylinder is designed primarily to create axial force; it is not usually a guide rail. Side load can accelerate bearing wear, score the rod, damage seals, distort the tube, and shorten service life even when the force calculation is correct. Use external linear guides, wear pads, rollers, or a properly designed linkage to carry transverse loads and moments.

Some applications cannot reasonably be solved by increasing rod diameter. A moving platen with poor guidance, for example, may need redesigned guides rather than a stronger cylinder. That is a machine design issue, not a cylinder catalog issue.

Mounting Geometry Changes Both Reliability and Usable Force

Mounting style determines how cylinder reaction loads enter the frame. Clevis, spherical bearing, trunnion, flange, foot, and centerline mounts each suit different motion paths. The right choice follows the mechanism, not personal preference.

Pin-mounted cylinders are appropriate when the cylinder must pivot through the stroke. Pins, bushings, and mating lugs should be checked for bearing stress, shear, wear, and lubrication access. A pin that is adequate for a static load may loosen quickly under frequent reversing cycles. Misaligned paired lugs can also create a bending load on the rod before the actuator begins moving.

Rigid mounts such as flange or foot mounts fit applications with guided linear motion and a stable centerline. They require better frame accuracy because they tolerate less angular movement. If the cylinder mounts are rigid while the driven member moves in an arc, the installation will force side load into the actuator.

Consider the cylinder envelope at both stroke ends. Many drawings show closed and extended lengths but omit practical clearance for hoses, ports, cushions, sensors, pin removal, wrench access, and service. For mobile equipment, allow for chassis flex and nearby components moving under vibration. For industrial presses, verify that the structure does not deflect enough to disturb rod alignment under peak load.

Pressure Rating Is Not the Same as an Application Rating

A cylinder rated for a stated maximum working pressure is not automatically appropriate for every circuit operating below that value. The application must account for pressure spikes, trapped fluid, thermal expansion, and load-induced intensification. A blocked port can see a pressure rise that is not obvious from the pump setting.

End-of-stroke deceleration needs its own review. Cushions may reduce impact, but their effectiveness depends on speed, load inertia, adjustment range, oil viscosity, and backpressure. A high-inertia mechanism may need external deceleration, a counterbalance arrangement, or control logic that slows motion before the cylinder reaches the end cap.

For suspended or overrunning loads, use appropriate load-holding components such as pilot-operated check valves, counterbalance valves, or safety-rated mechanical restraints where the risk assessment requires them. A directional valve alone may not safely hold position in the presence of internal leakage, hose failure, or spool leakage. The suitable arrangement depends on the machine function and applicable safety requirements.

Standards and documentation matter here. ISO 6020/2 and ISO 6022 are commonly referenced dimensional standards for certain metric hydraulic cylinder series, while ISO 3320 addresses mounting dimensions for many hydraulic cylinders. These references help with interchangeability and interfaces; they do not replace an application-specific verification of force, fatigue, buckling, and safety behavior. Confirm the latest applicable edition and any customer, machine, or regional requirements before specifying compliance.

Materials, Seals, and Environment Cannot Be Left Until Purchase Order Stage

Seal selection must match fluid type, operating temperature, speed, pressure cycling, and contamination exposure. Standard sealing may be suitable for conventional mineral hydraulic oil, yet unsuitable for high-temperature service, water-glycol fluids, aggressive cleaning environments, or outdoor exposure. Rod coating and corrosion protection deserve equal attention in marine, mining, water-treatment, and washdown equipment.

A polished rod surface is not simply a cosmetic feature. Surface finish, hardness, coating adhesion, and protection from impact directly affect seal life. In a dusty environment, a damaged wiper or torn rod boot can admit contamination that later damages the rod seal, piston seal, valve spools, and pump. Specify filtration targets and maintenance practices as part of the hydraulic system, not as an afterthought assigned to operations.

For recurring machinery programs, ask suppliers for material traceability, pressure-test information, dimensional drawings, seal details, and clear limits on permissible side load and buckling. A lower initial cylinder price offers little value if replacement requires unplanned downtime or a redesign of the mounting bracket.

A Practical Review Sequence Before Release

The fastest way to avoid missed constraints is to review the actuator in the order the machine experiences it. First, verify the load path and force profile. Then calculate extension and retraction force at minimum inlet pressure. Confirm required speed against available flow. Check rod buckling at maximum extension, followed by mounting loads, pin design, guide arrangement, end-of-stroke energy, pressure transients, and environmental suitability.

Finally, inspect the installation drawing with maintenance in mind. Can the cylinder be removed without dismantling half the machine? Are ports accessible? Is there enough hose bend radius? Can the rod be protected during transport and service? These questions reveal many problems that calculations alone cannot.

Global Industrial Machining & Piping Equipment Network (IMPE) organizes technical information across hydraulic equipment, machined components, castings, forgings, and power transmission systems. That broader view is useful when cylinder selection depends on the quality of mounting brackets, pins, guide rails, valve control, or the hydraulic power unit rather than on the actuator in isolation.

FAQ

How much safety factor should be used for cylinder force?

There is no single correct figure. Base it on uncertainty in the load, shock severity, consequences of stalled motion, fluid pressure variation, and expected wear. Calculate the actual demand first, then document why the selected margin is appropriate.

Can a larger bore solve a weak actuator design?

Only when insufficient hydraulic force is the real issue. A larger bore does not correct rod buckling, side load, poor mounting alignment, inadequate pump flow, or a weak machine frame.

Why does the cylinder retract faster than it extends?

With equal pump flow, the rod-side annular area is smaller than the full piston area. Less oil volume is needed per unit of travel, so retract speed increases. Separate flow control may be needed when equal speed is required.

When should a cylinder have external guides?

Use external guides whenever the moving member can impose lateral force or a bending moment on the rod. Press platens, sliding guards, lifting tables, and long moving tools commonly need guidance independent of the cylinder.

A well-sized linear hydraulic actuator is therefore a matched part of a mechanical and fluid-power system. Select it from verified force, flow, rod stability, mounting geometry, and service conditions, then validate the complete installation before production release.
